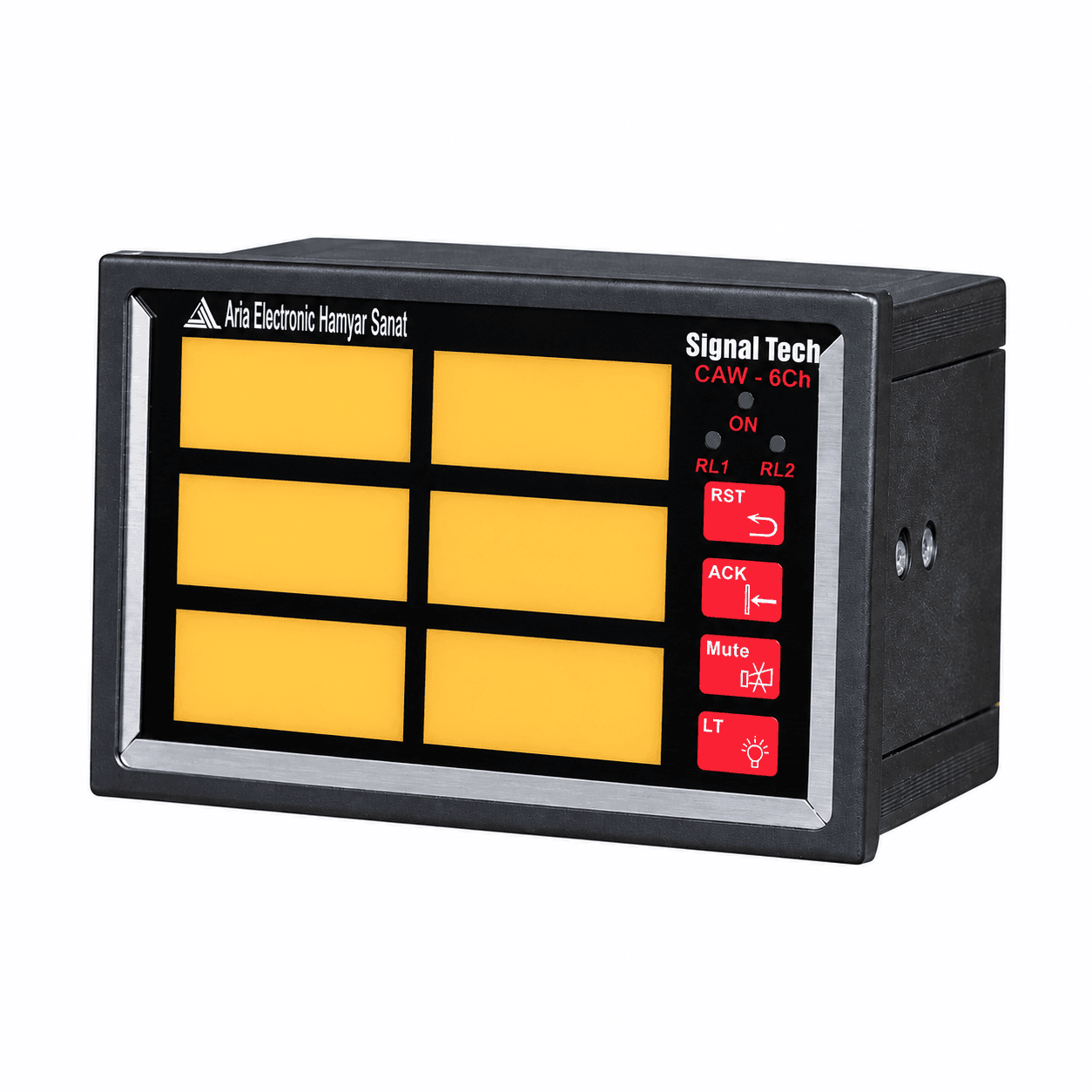

6-Channel Alarm Annunciator

Description

• Frame dimensions: 96 × 144 mm
• Cutout Size: 138 × 90mm
• Window Light Type: LED
• Quick color change for each channel by replacing white, yellow, red, and green filters
• Selectable fault type: Critical / Non-Critical
• First Alarm indication capability
• Selectable input logic: Normally Open (NO) / Normally Closed (NC)
• Supports ISA 18.1 sequence-of-operation standard
• Equipped with 2 Common Alarm outputs in contact form, Normally Open (NO)
• Selectable Reset mode: Automatic or Manual
• Built-in power supply with AC/DC input and automatic protection against short circuit and overtemperature
• Supply Voltage: 24 / 48 / 110 / 125 / 220 V AC/DC
• Supply Voltage: 24 / 48 / 110 / 125 / 220 V AC/DC
• Alarm status indication for Critical / Non-Critical (Maj/Min)
• Auto Horn Off function
• Easy panel mounting using two side-mounted brackets
• Easy window labeling using transparent film and tracing paper
• Equipped with four operational keys on the front panel and external controls for:
  • Reset
  • Lamp Test
  • Horn Off / Mute
  • Acknowledge
• Selectable window light colors for Trip and Alarm conditions
• Operating Temperature: -30°C to +70°C
